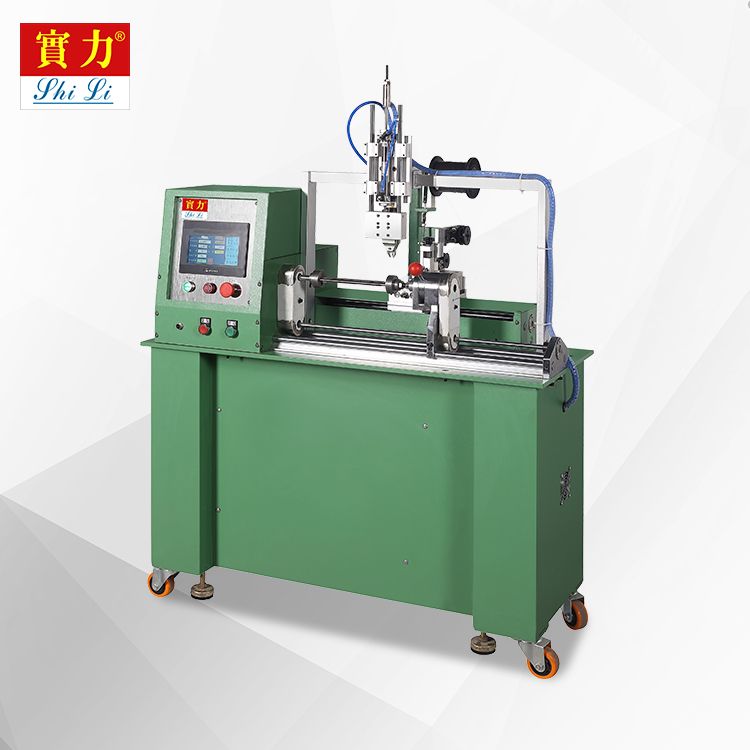

Brief introduction ,Winder: As the name suggests Winder is the wire wrapped around the machine-specific objects on the workpiece.

Common Winder wound enamelled copper wire, mostly (wound electronic and electrical products, inductors), textile threads (winding spindles spinning machine, the wire group), as well as use of electric appliances wound hot wire and solder wire, wires, cables, etc.Winder has many species, classified according to their use, can be divided into general-purpose and special-purpose; Universal - by one or several wires suitable many winding winding machine frame.Common Universal enameled winding machine has; equipped with a circular about the axis is called "single-head machine", according to such a heap of "double-headed machine" three machines "......" 6 machine "dedicated - is equipped with a fixed special winding chuck, only wound a coil winding machine; common dedicated Winder have;

Frist , square transformer winding transformer dedicated machine;

1,square dedicated transformer - (thin dedicated machines, thick lines dedicated machine)

2, toroidal transformer dedicated - (macrocyclic machine, Central machines, small ring machine)

3, other types of special transformers

Second, the winding motor coil special machine

1, the fan motor dedicated machine (seat fan, ceiling fan, fan)

2, toys micro motor special machine; (flying fork, special winding type)

3, series excitation type rotor coil for machine (power tools)

4, fractional horsepower motor, and high horsepower motor special machine.

Third, the winding inductance coil dedicated machine

1, in the weeks and color code inductance special machine

2, small magnetic inductance coil special machine

3, sound frequency coil machine special for loudspeaker voice coil winding machine

4, the fluorescent lamp (electronic energy saving lamp ballast) special machine

Fourth, other special winding machine special for the speaker voice coil machine

1, special loudspeaker voice coil machine

2, the electric heating tube special machine

3, insulation tape wrapping machine

4, textile spindle special machine

Winding machine according to the degree of automation can be divided into simple type,semi-automatic type, automatic type.Electronic control mode with NC type microcomputer single chip microcomputer and IBM computer control. According to installation classification for desktop and floor type machine.
