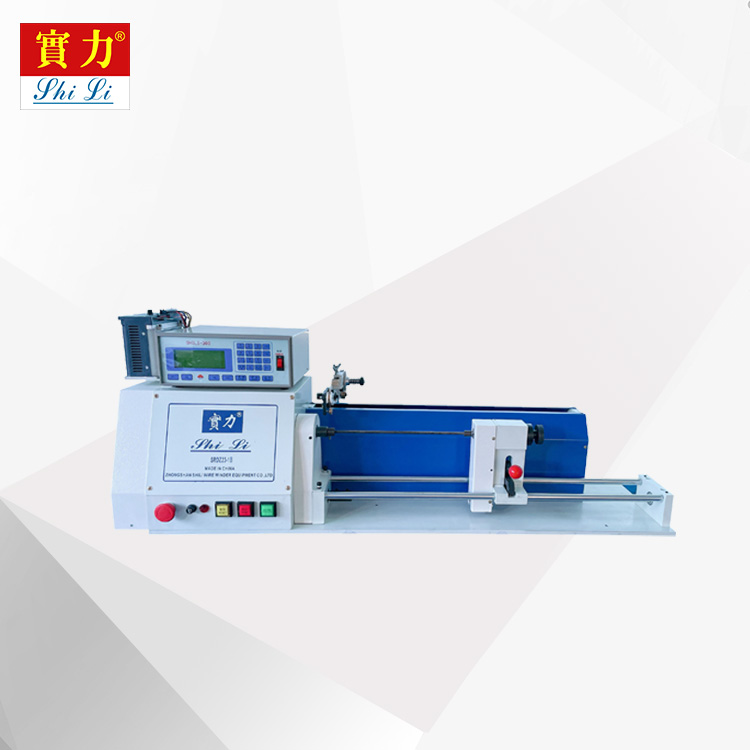

SRDZ23-1B
Date:2019-08-28 16:00:12 Click:



SRDZ23-1B


Machine Feature:


Professional winding various long type coil, two side spindle synchronous rotation, stable and reliable.All the parts for this machine are imported prats,such as:Japan Bearing (NSKNTN),Japan BANDO belt Japan GATES belt Taiwan Ball screw (TBI)Taiwan AC Drive and so on.


Main features:


1、Use LCD19264 as display module
2、Support Simple Chinese and English
3、Friendly GUI make it easy to use this system
4、The error diagnosis system can help user debug the machine
5、30 programs, and 30 steps per grogram



Application Range


All kinds of fishing spool, fishing line product.



Specifications



Spindle number

1

Wire size range

0.05-1.0mm

Loop diameter

140mm

Max wire distance

9.9mm

Winder width

600mm

Max. speed

0-1500/RPM

Spindle motor

Three Phase motor+AC Drivers

Winder motor

 stepping motor

Max. winder diameter

80mm

Input power

220V  50HZ/60HZ

Package size

1290*520*630mm

Gross weight

137kg
