SRK24-1 hollow coil winder

Date：2019-09-04 16:21:40 Click：

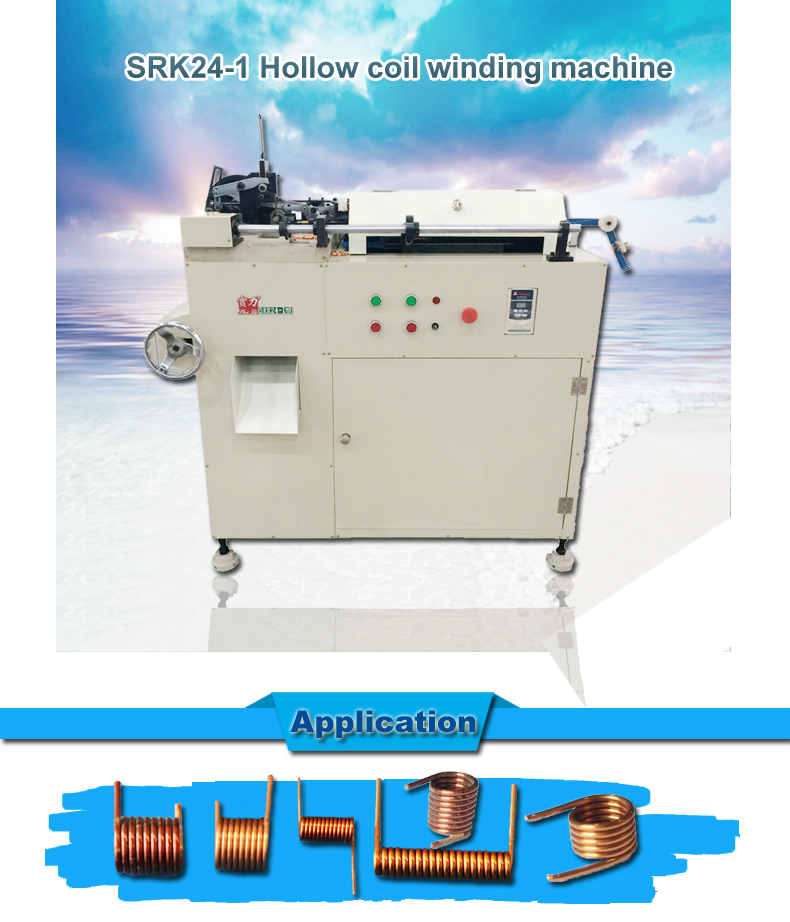

SRK24-1 hollow coil winder

Function and feature:
A Automatic reel and stripping molding at once.
B Using frequency conversion control, stable performance.
C Precision mechanical structure, reliable and durable, easy to maintain.
D The length of coil number can through by fine tuning ,simple operation.
E Tightly winding, sparse around, Left, Right can be swappable.

Application range:
All kinds of hollow coil(Air coil).


Spindle number	1
Wire size range	0.35-1.5mm(19-7AWG)
Max speed	30 / min
Spindle motor	Three-phase motor+Phase motor+ AC Drivers
Coil inner diameter	1-10MM
The max winding turns	30Laps
Stripping length coil	3-10mm
Input power	220V 50HZ/60HZ
Package size	7407601440mm
Gross weight	159kg
