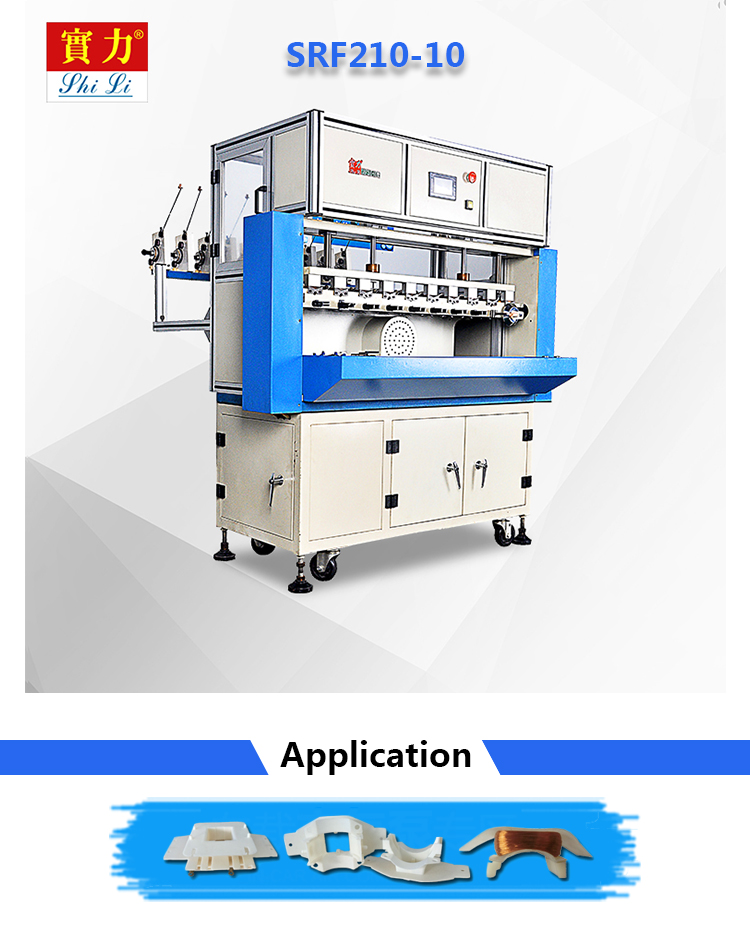

SRF210-10
Date:2019-08-26 13:03:34 Click:


SRF210-10

Machine feature:


This machine adopts PLC touch screen imported from Taiwan, Taiwan (TBI) ball screw and guide rail ,Japan bearings (NSK), Japan BANDO belt. Machine with thick cast iron box, with high-power three-phase AC motor torque at low speeds greater, with full English and Chinese display, operation and set parameters is more simple and convenient, high speed, accurate positioning, so that customers in the course of truly experience the saving time, labor, and high efficiency.




Function and feature


A.The installation of disconnection detection, front and rear machine limit device.

B.The special winding fixture design, to prevent loosening.

C.Using of high-precision magnetic tension device, the winding effective more better.

D.Winding 10 products at the same time , realize the real efficient.

E.With auto flip function,to achieve change bobbin and winding at the same time.




Application range


Suitable for all kinds of Shaded pole motor coil.




Specifications


Spindle number

10

Wire size range

0.1-0.55mm

Loop diameter

Φ75mm

The max wire spacing

9.99mm

Winder width

75mm

Max speed

0-4500RPM

Spindle motor

1.5KW AC motors

Winder motor

Stepping motor

Control mode

PLC and stepper motor drive system

Winder direction

Adjustable at both ends

Input power

220V,60/50Hz

Package size

1550*1000*1630mm

Weight

550kg
