The parameter setting of automatic winding machine is a big problem, if the set is not good, cable is not accurate,not ranked neatly, resistance is not enough, the heat dissipation problems will occur, how to set parameters to tell you.

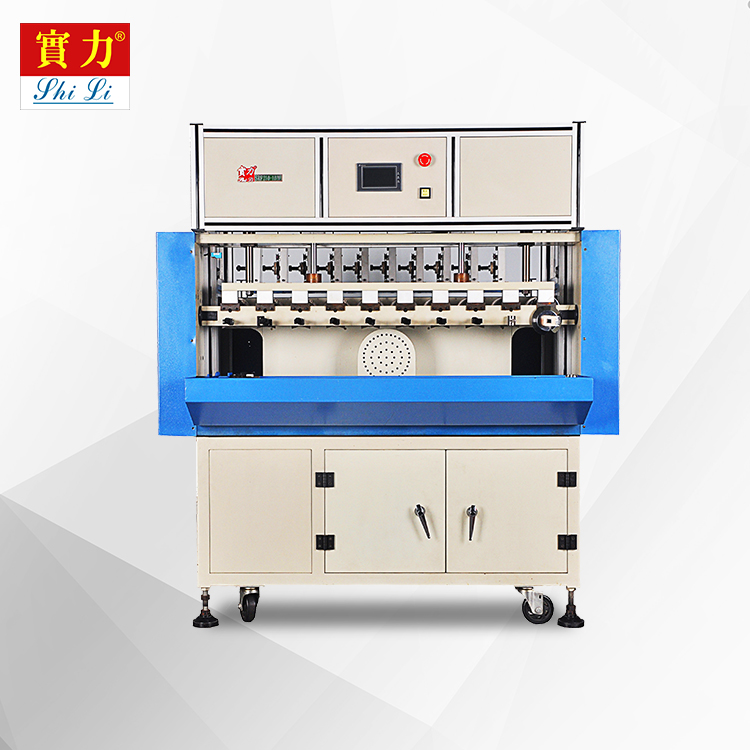

The modern automatic winding machine with the progress of science and technology and its function and control have become more powerful and reliable, compared with the traditional winding machine performance is more outstanding, the work efficiency can be greatly improved,as a set of numerical control, photoelectric pneumatic equipment such as a series of new technology application,the complexity of its structure and function is increasing,this paper set up automatic winding method common parameter line machine makes a simple introduction.

One, around the set point

The starting point of automatic winding machine to play around the point is the meaning of equipment began to cable, is between the cable shaft and a winding skeleton of a distance parameter, this parameter is determined by the specific process of winding, winding machine generally has a real-time measurement function, can be measured in the play around the point data through the function, but also can be calculated from around the point data by artificial means, setting the parameter is the need to pay attention to is clear direction equipment cable, cable direction andaround the point set correctly has direct relation to it or not,to ensure that the set up around the point with the winding process.

Second, the winding diameter of the set

     The implication is that the diameter of the coiled set correctly used enameled wire diameter, diameter determines whether the normal cable winder, should be based on the actual diameter of 0 to 5 percent diameter plus the amount of correction, using copper wire and aluminum difference is large, the set value because of the different materials are different, the use of copper wire whose diameter correction value can be appropriately reduced, the use of aluminum, in combination with the set tension value of the correction amount to adjust the diameter .

Third, the winding width settings

     Wide simple understanding is from the point to the layer winding around the end of the distance, which is the same distance from the bobbin, the actual width is set to consider the deformation of the skeleton, the skeleton deformation for serious distortion to increase amount correction value, set the value of the width measurement function may be by means of the winding machine to complete, for the measurement of the skeleton is also necessary, select a certain number of targeted for measurement of the skeleton, a comprehensive set of data about the measured line width.

Fourth, other commonly used parameter settings

Automatic Winder common set parameters as well as automatic start, automatic homing, layers stop, slow and a series of auxiliary functions, which needs to be used in conjunction with the user's actual winding process, the winding tension device machine also plays an important role in setting proper tension coil winding can be more docile and beautiful, otherwise there will be stripping improper tension setting, changing the electrical characteristics of the coil.

When the user is familiar with the device parameters after setting method should combine their winding characteristics of the product to adjust equipment, setting method is not static, flexible combination of applications, users should be summed up in actual use, so as to better play a role in the efficiency and automatic winding machine.
