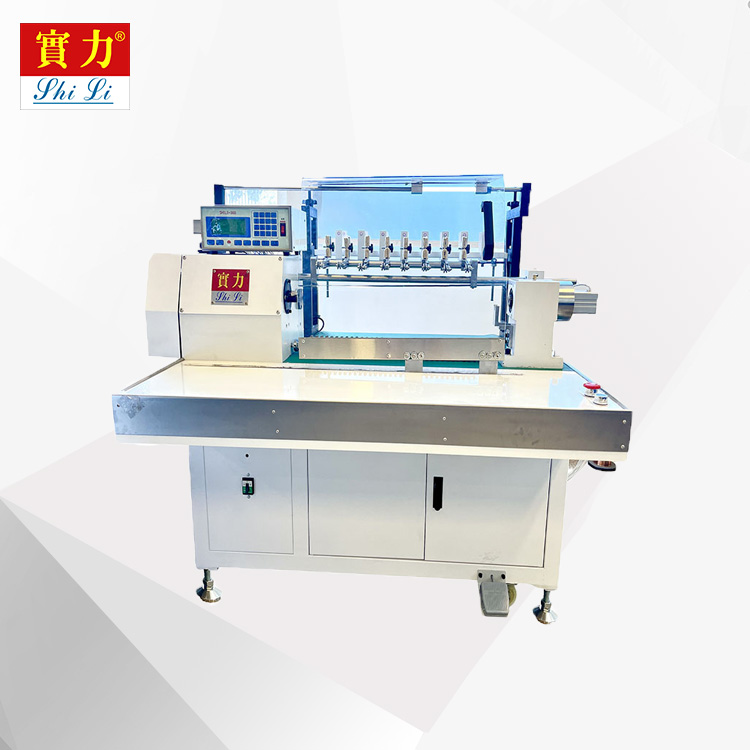

Machine Feature:

All the parts for this machine are imported prats,such as:Japan Bearing (NSK、NTN),Japan BANDO belt ，U.S.A GATES belt ，Taiwan Ball screw (TBI)，Taiwan Transducers and so on.

Change the winding spindle is by pneumatic . The machine can be used for multi connected, coil automatic wire winding of multilayer type , it can winding  1-8 wire at one time.can also be pass the groove automatically . Can winding 1-32 coils in the winder length range. There are two alternate use of the square shaft rotatable about the coil diameter 25MM-180MM, high production efficiency.

For the characteristics of the machine winding ,the machine body use thick cast iron , The vibration and noise of smaller machines, it also have when wire cutting the machine will stop function, not discarded products.

Main configuration:

1、Use LCD19264 as display module
2、Support Simple Chinese and English
3、Friendly GUI make it easy to use this system
4、The error diagnosis system can help user debug the machine
5、30 programs, and 30 steps per grogram

Application range：

Can winding a variety of motor coil product, including industrial motors, air conditioner motors, washing machine motors, fan motors,Fishing line spool product.

Specifications：
